Set up TP-Link Omada with MyWiFi

What you'll need

• Admin access to your Omada Controller (Cloud or on-premises)
• Omada Software/Hardware Controller v5.12+ or Omada Pro, if you want MyWiFi to manage sites/SSIDs (the WiFi network name a guest sees when connecting) directly through Omada's Open API — the free Cloud-Based Controller (CBC) doesn't support this
• A dedicated Hotspot Operator account (not your controller admin login)
• You'll enable a captive portal (the mini-browser window a phone opens automatically when a guest joins a WiFi network) on your guest SSID directly in Omada during setup

Steps

1. In Omada Controller, go to Settings > Hotspot Manager > Add Operator and create a dedicated Hotspot Operator account scoped to the relevant site. MyWiFi needs this operator account, not your admin login — Omada rejects admin credentials for the guest-authorize calls MyWiFi makes.
2. Go to your guest SSID settings, enable the captive portal, set the portal type to External Web Portal, and paste the MyWiFi splash page (the branded login page guests see when they connect) URL into the Custom Portal Server field.
3. Add the MyWiFi portal domain (and any CDN hostnames it uses) to the Walled Garden list (the small list of domains a guest can reach before logging in).
4. If you want MyWiFi to provision sites or manage SSIDs directly (optional): go to Global View > Settings > Platform Integration > Open API, create a Client Mode app, and note the Client ID and Client Secret. This step requires Omada Software/Hardware Controller v5.12+ or Omada Pro — skip it if you're on the free CBC controller.

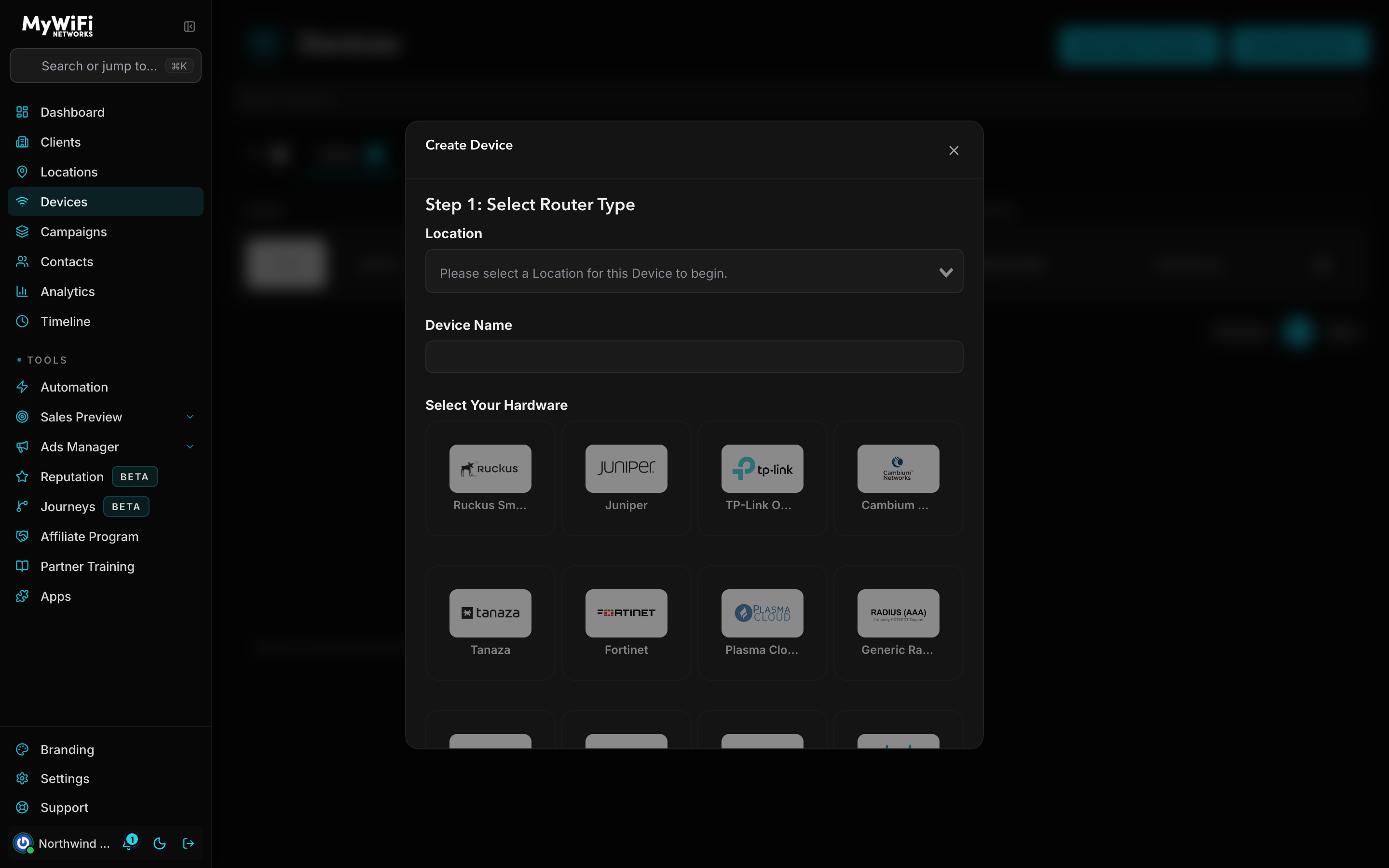

5. In the MyWiFi dashboard, go to Devices and click Add Device.
6. Select the Location, name the device, and under Select Your Hardware choose TP-Link Omada.
7. Enter your Omada connection details as prompted — your controller's URL, the Controller ID (visible in your controller's URL bar), and the Hotspot Operator username/password from step 1 — and save.

Best practice: the controller's HTTP portal will only redirect to an HTTPS splash URL, and it will only accept a portal login from the Operator role you created in step 1 — using the admin account here is the most common setup mistake and will silently fail guest logins.
